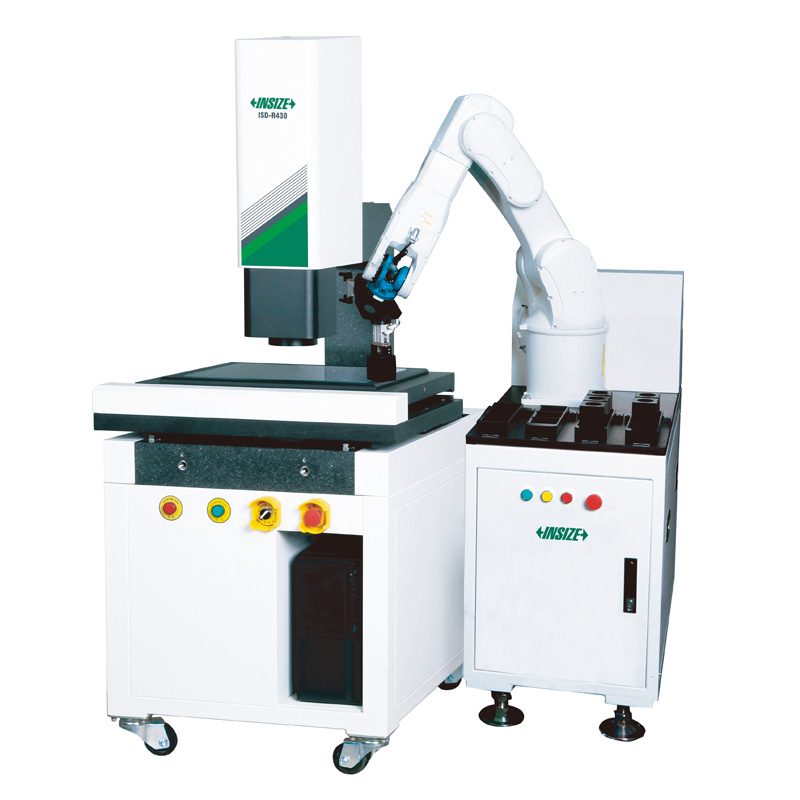

Automatic Vision Measuring System
Code: RBT-ISD01
6-axis industrial robot for high speed and precision, IP67, triple protection
Vision measuring system automatically measures the dimensions of the workpiece and provides real-time feedback to the control system
Control system Tcp/IP via bus communication, high speed, high efficiency and easy to extend
Specification
| Code | Range | Accuracy | Robot |
|---|---|---|---|
| RBT-ISD01 | 300×200×200mm | ≤(2.5+L/200)µm, L is the measuring length in mm | can be customized |
