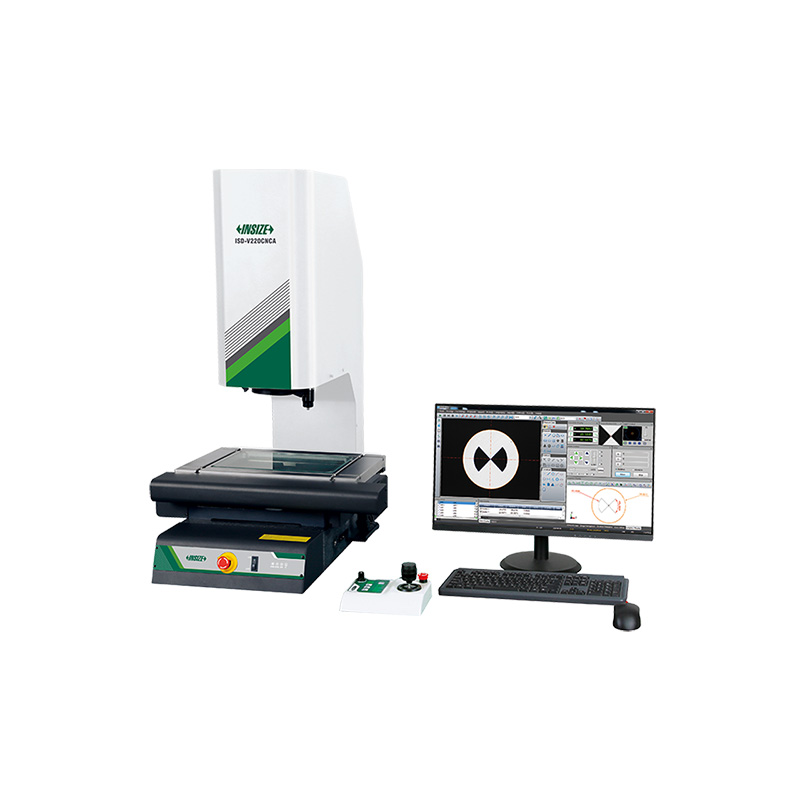

CNC Vision Measuring Systems (Standard Type)
Code: ISD-V Series
Automatic edge-detection, focus,measuring, contour scanning, calibration, etc.
Servo motors for X, Y, Z axis
SPC function for large quantity measurement
Measuring software is included
| Code | Range | Accuracy | Resolution | Repeatability | Magnification | Max. load |
|---|---|---|---|---|---|---|
| ISD-V220ZA | 220×120×150mm | ≤(2.5+L/100)µm | 0.5µm | 2µm | 31.9X~188.7X (with motorized zoom lens, on 24'' monitor) | 30kg |
| ISD-V220ZHN | 220×120×300mm | ≤(2.5+L/100)µm | 0.5µm | 2µm | 31.9X~188.7X (with motorized zoom lens, on 24'' monitor) | 30kg |
| ISD-V270ZA | 270×170×150mm | ≤(2.5+L/100)µm | 0.5µm | 2µm | 31.9X~188.7X (with motorized zoom lens, on 24'' monitor) | 30kg |
| ISD-V270ZHN | 270×170×300mm | ≤(2.5+L/100)µm | 0.5µm | 2µm | 31.9X~188.7X (with motorized zoom lens, on 24'' monitor) | 30kg |
| ISD-V370ZA | 370×270×150mm | ≤(3.5+L/100)µm | 0.5µm | 2µm | 31.9X~188.7X (with motorized zoom lens, on 24'' monitor) | 30kg |
| ISD-V370ZHN | 370×270×300mm | ≤(3.5+L/100)µm | 0.5µm | 2µm | 31.9X~188.7X (with motorized zoom lens, on 24'' monitor) | 30kg |
| ISD-V220CNCA | 220×120×150mm | ≤(2.5+L/100)µm | 0.5µm | 2µm | 33.0X~208.6X (with manual zoom lens, on 24'' monitor) | 30kg |
| ISD-V220HN | 220×120×300mm | ≤(2.5+L/100)µm | 0.5µm | 2µm | 33.0X~208.6X (with manual zoom lens, on 24'' monitor) | 30kg |
| ISD-V270CNCA | 270×170×150mm | ≤(2.5+L/100)µm | 0.5µm | 2µm | 33.0X~208.6X (with manual zoom lens, on 24'' monitor) | 30kg |
| ISD-V270HN | 270×170×300mm | ≤(2.5+L/100)µm | 0.5µm | 2µm | 33.0X~208.6X (with manual zoom lens, on 24'' monitor) | 30kg |
| ISD-V370CNCA | 370×270×150mm | ≤(3.5+L/100)µm (L is the measuring length in mm) | 0.5µm | 2µm | 33.0X~208.6X (with manual zoom lens， on 24'' monitor) | 30kg |
| ISD-V370HN | 370×270×300mm | ≤(3.5+L/100)µm (L is the measuring length in mm) | 0.5µm | 2µm | 33.0X~208.6X (with manual zoom lens， on 24'' monitor) | 30kg |

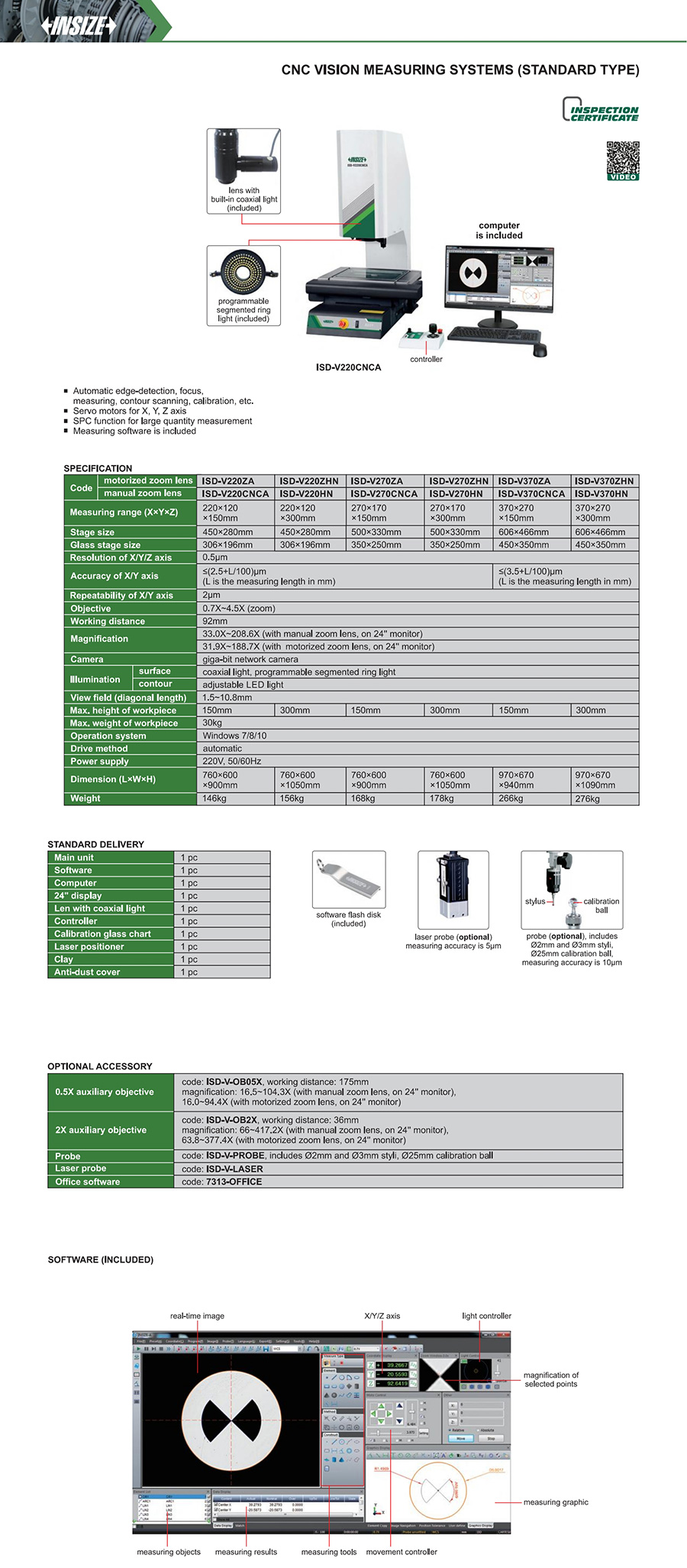

View the complete
product specifications
FAQ
What industries commonly use a desk-type system like the ISD-V?
Based on its measurement domain, common users include electronics and PCB manufacturers, mold and hardware shops, automotive component suppliers, and general precision component producers who need non-contact 2D dimensional checks (planar dimensions, contours, hole positions, angles) without the footprint or cost of a full CNC system.
What is the ISD-V vision measuring system typically used for?
The ISD-V is a desk-type, non-contact vision measuring system suited to small and medium-sized precision parts — typically electronics components, hardware, plastics, and mold-related parts. Its measuring range (220×120×150mm on the ISD-V220 models) makes it a good fit for smaller workpieces rather than large or heavy assemblies.
How accurate is the ISD-V compared to CNC models like the ISD-R or ISD-K?
The ISD-V is rated at X/Y accuracy of ≤(2.5+L/100)µm, while the CNC-driven ISD-R and ISD-K are rated at ≤(2.5+L/200)µm and ≤(1.8+L/200)µm respectively. In practical terms, the ISD-V's tolerance widens faster as the measured length increases, so it is best suited to parts and features within a moderate size range rather than very long dimensions.
Does operating the ISD-V require CNC programming experience?
No. The ISD-V is designed around a straightforward, three-in-one software interface intended for minimal training — an operator places the workpiece, adjusts focus and illumination, and edits a measurement program without needing CNC part-programming knowledge.
Can the ISD-V export measurement data in different report formats?
Yes. Measurement results can be exported in formats such as Word and Excel, with the exported report including both the measured pattern and the corresponding dimensional data of the tested workpiece.
