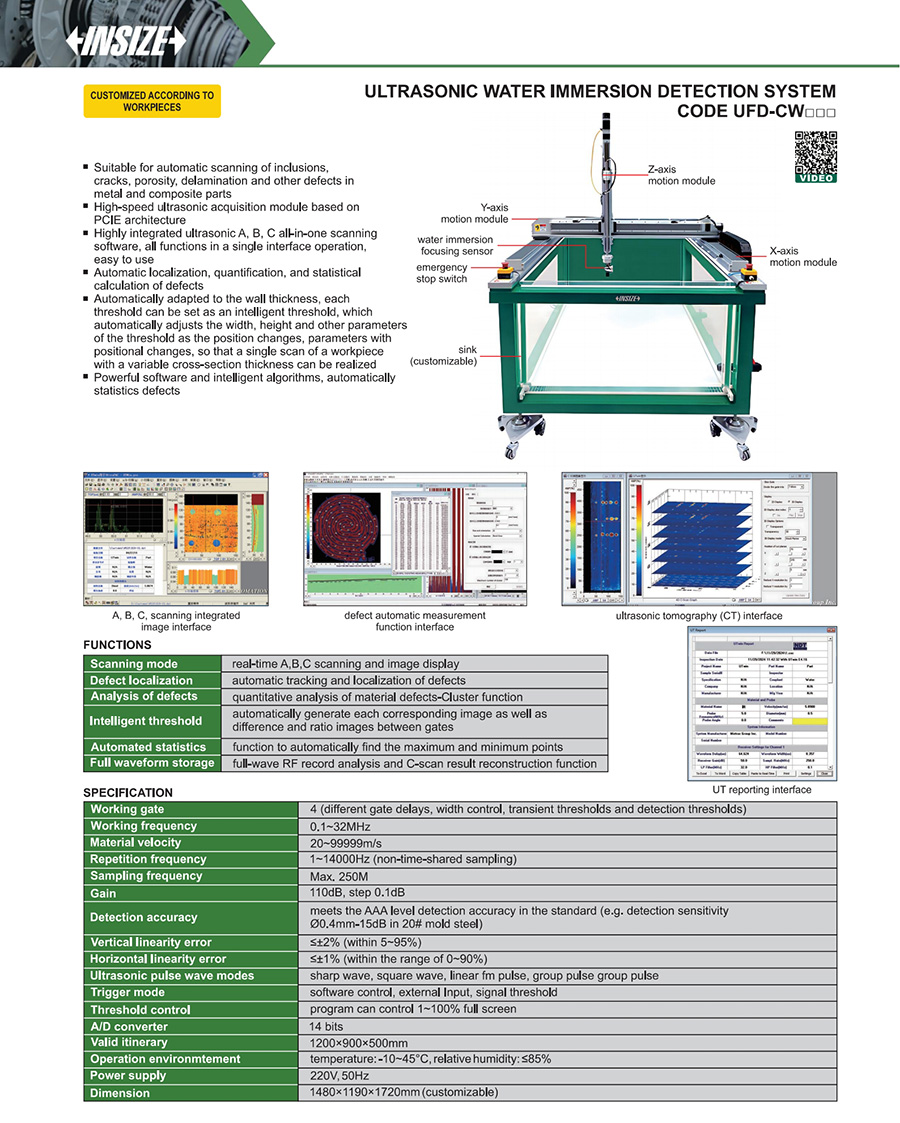

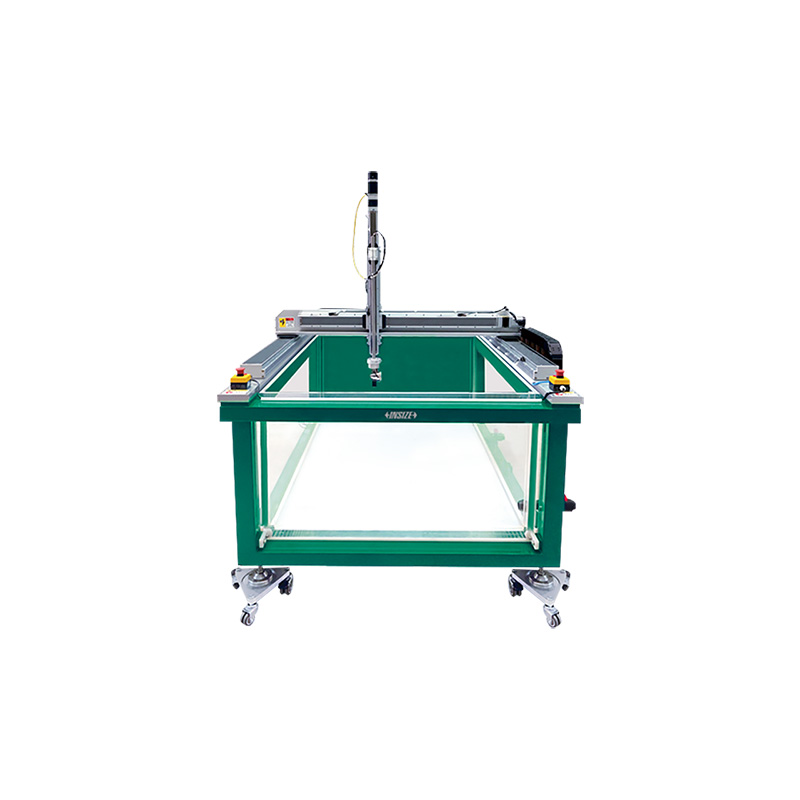

Ultrasonic Water Immersion Detection System
Code: UFD-CW
Suitable for automatic scanning of inclusions, cracks, porosity, delamination and other defects in metal and composite parts
High-speed ultrasonic acquisition module based on PCIE architecture
Highly integrated ultrasonic A, B, C all-in-one scanning software, all functions in a single interface operation, easy to use
Automatic localization, quantification, and statistical calculation of defects
Specification
| Code | Frequency | Vertical linearity | Horizontal linearity |
|---|---|---|---|
| UFD-CW□□□ | 0.1~32MHz | ≤±2% (within 5~95%) | ≤±1% (within the range of 0~90%) |
