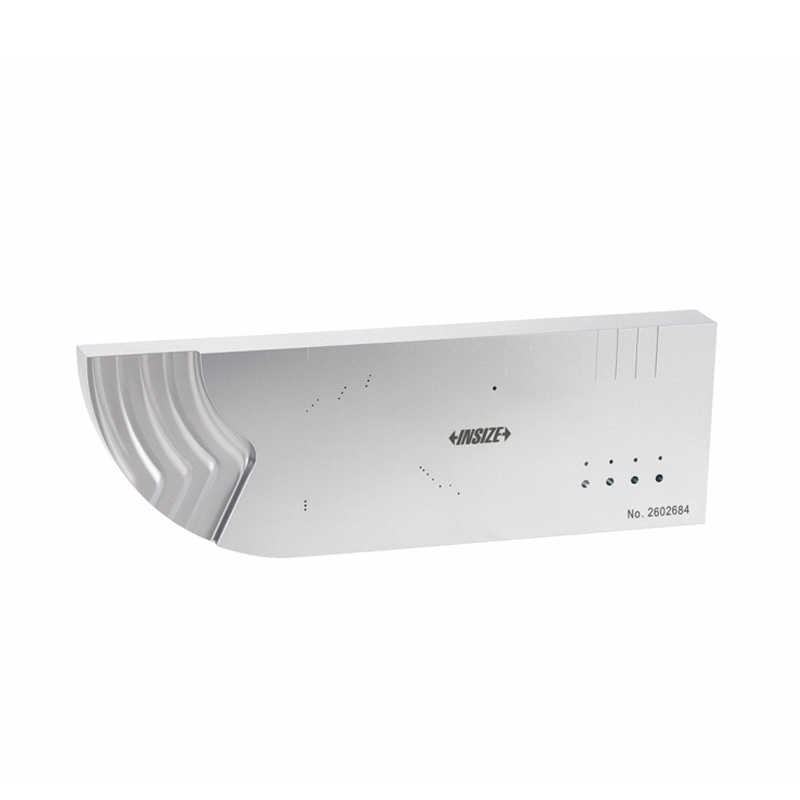

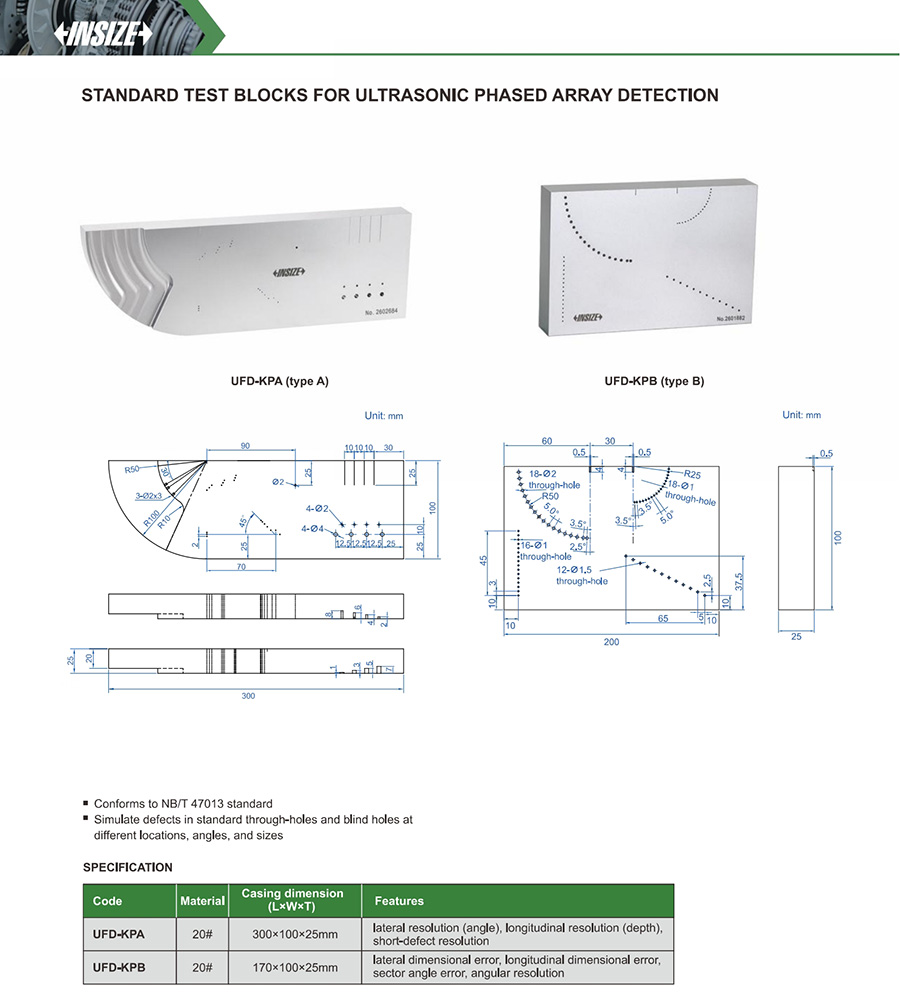

Standard Test Blocks For Ultrasonic Phased Array Detection
Code: UFD-KPA/KPB
Conforms to NB/T 47013 standard
Simulate defects in standard through-holes and blind holes at different locations, angles, and sizes
Specification
| Code | Material | Features |
|---|---|---|

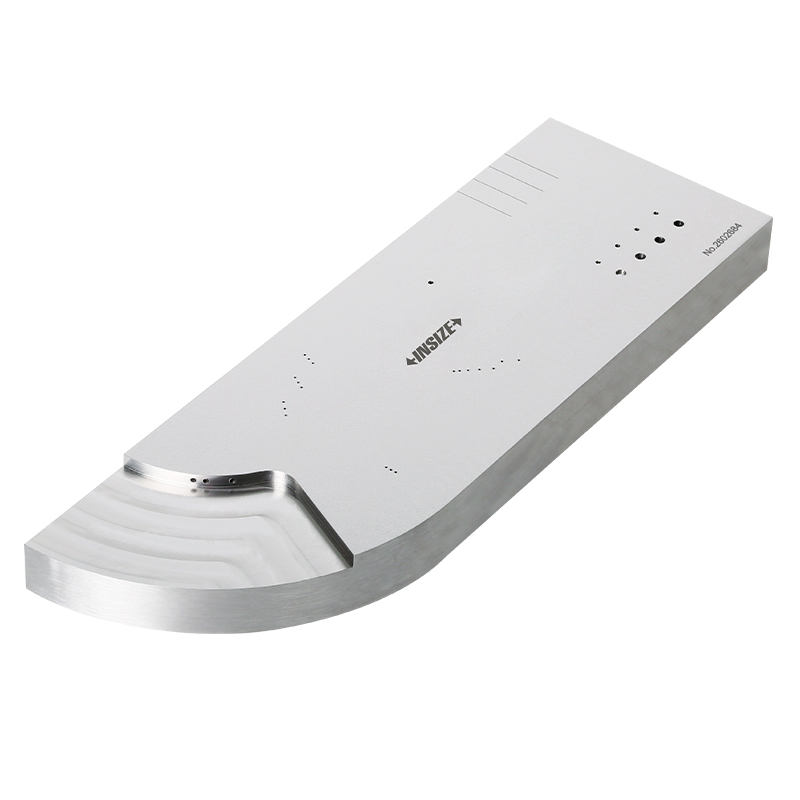

| UFD-KPA | 20# | lateral resolution (angle), longitudinal resolution (depth), short-defect resolution |

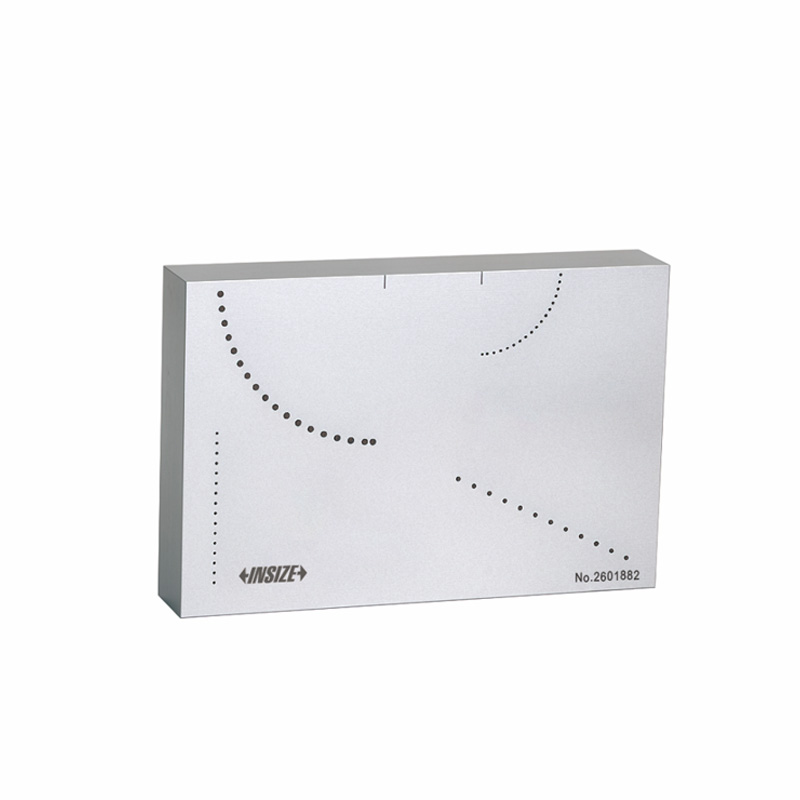

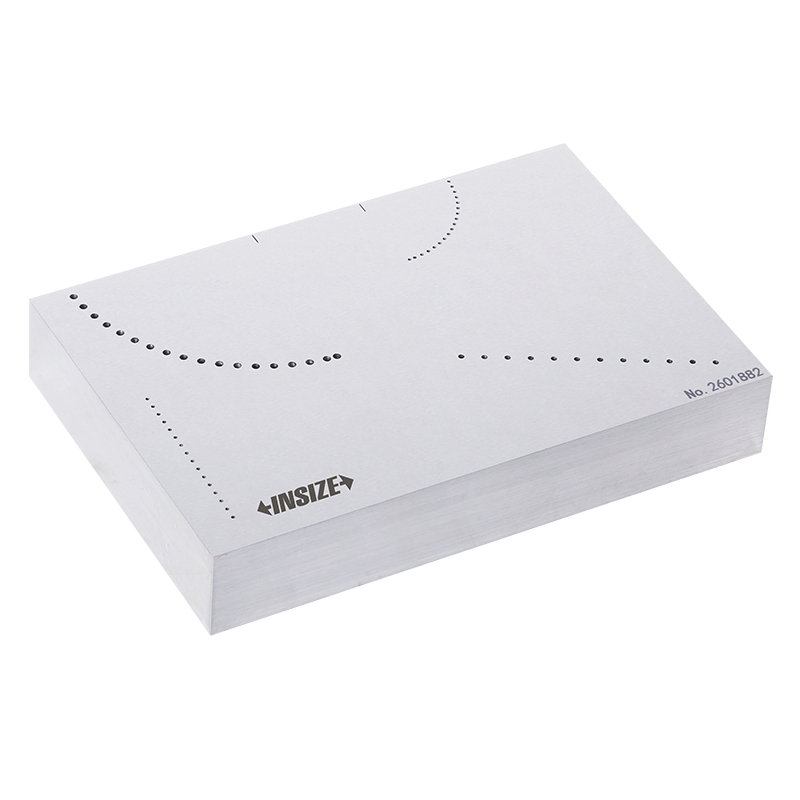

| UFD-KPB | 20# | lateral dimensional error, longitudinal dimensional error, sector angle error, angular resolution |
