Horizontal Profile Projectors
Code: ISP-W3020/A3000E
| Code | Type | Range | Accuracy | Resolution | Edge detector | Projector screen diameter | Image |
|---|---|---|---|---|---|---|---|

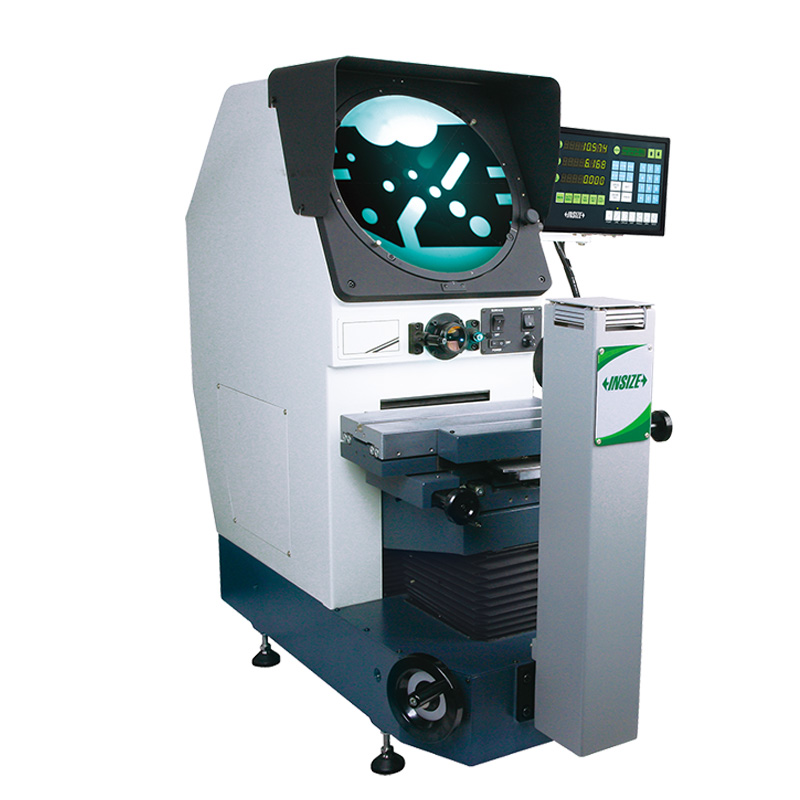

| ISP-W3020 | horizontal | 200×100mm | (3.5+L/50)µm | 0.5µm | not included | Ø300mm | inverted image |

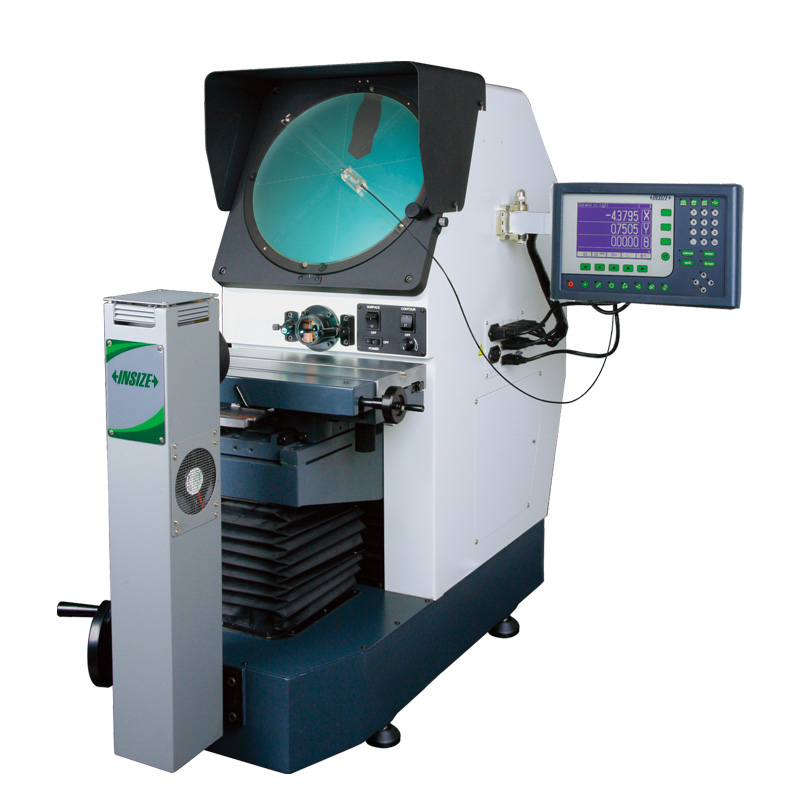

| ISP-A3000E | horizontal | 200×100mm | (3.5+L/50)µm | 0.5µm | included | Ø300mm | inverted image |
