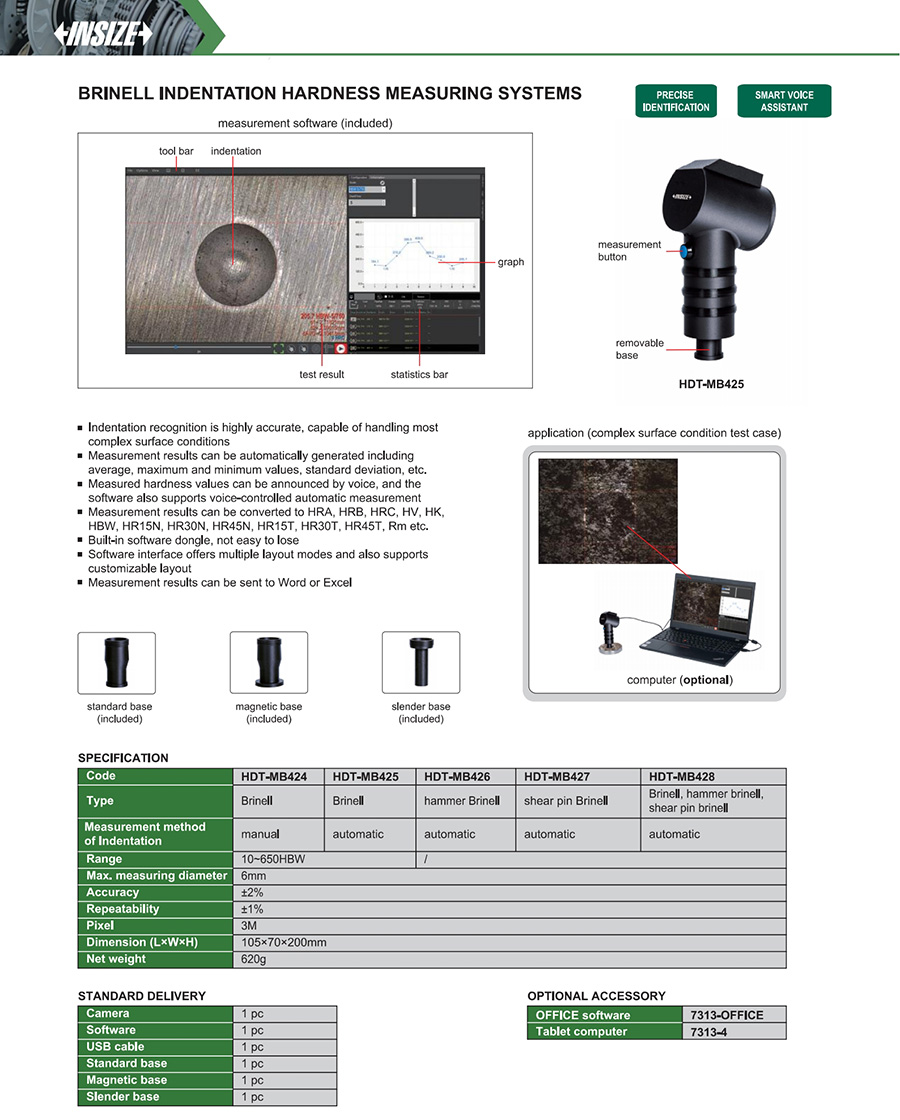

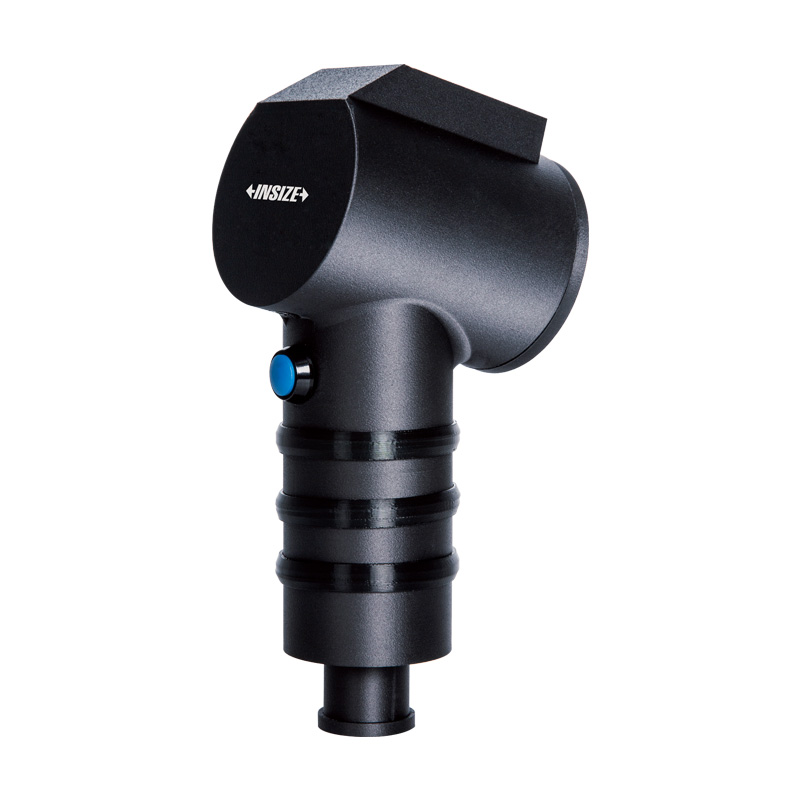

Brinell Indentation Hardness Measuring Systems
Code: HDT-MB Series
Indentation recognition is highly accurate, capable of handling most complex surface conditions
Measurement results can be automatically generated including average, maximum and minimum values, standard deviation, etc.
Measured hardness values can be announced by voice, and the Software also supports voice-controlled automatic measurement
Measurement results can be converted to HRA, HRB, HRC, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, Rm etc.
Built-in software dongle, not easy to lose
Software interface offers multiple layout modes and also supports customizable layout
Measurement results can be sent to Word or Excel
Specification
| Code | Type | Range | Measurement method of indentation |
|---|---|---|---|
| HDT-MB424 | Brinell | 10~650HBW | manual |
| HDT-MB425 | Brinell | 10~650HBW | automatic |
| HDT-MB426 | hammer Brinell | - | automatic |
| HDT-MB427 | shear pin Brinell | - | automatic |
| HDT-MB428 | Brinell, hammer brinell, shear pin brinell | - | automatic |
