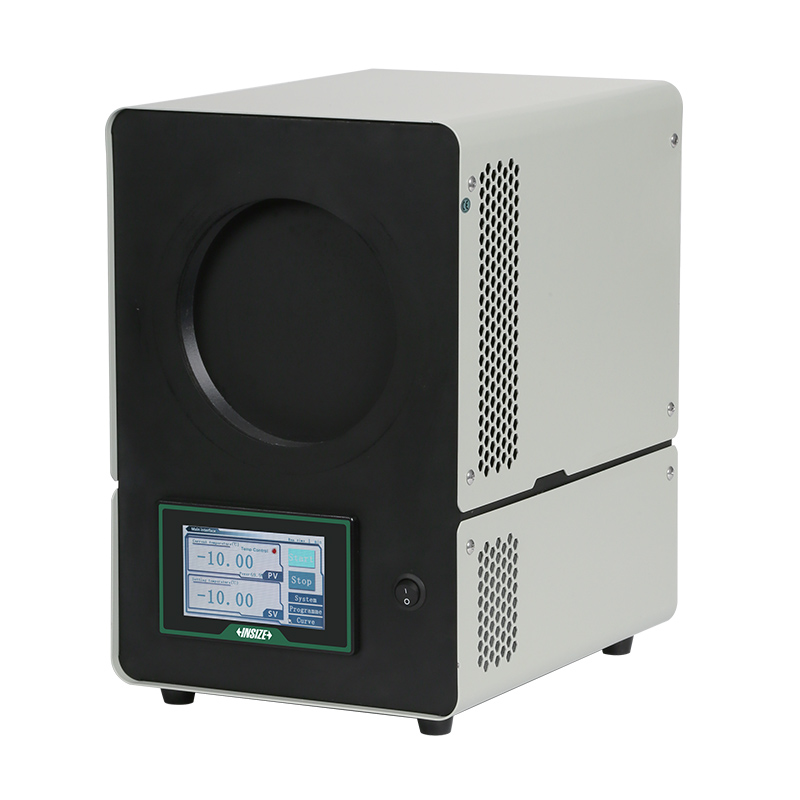

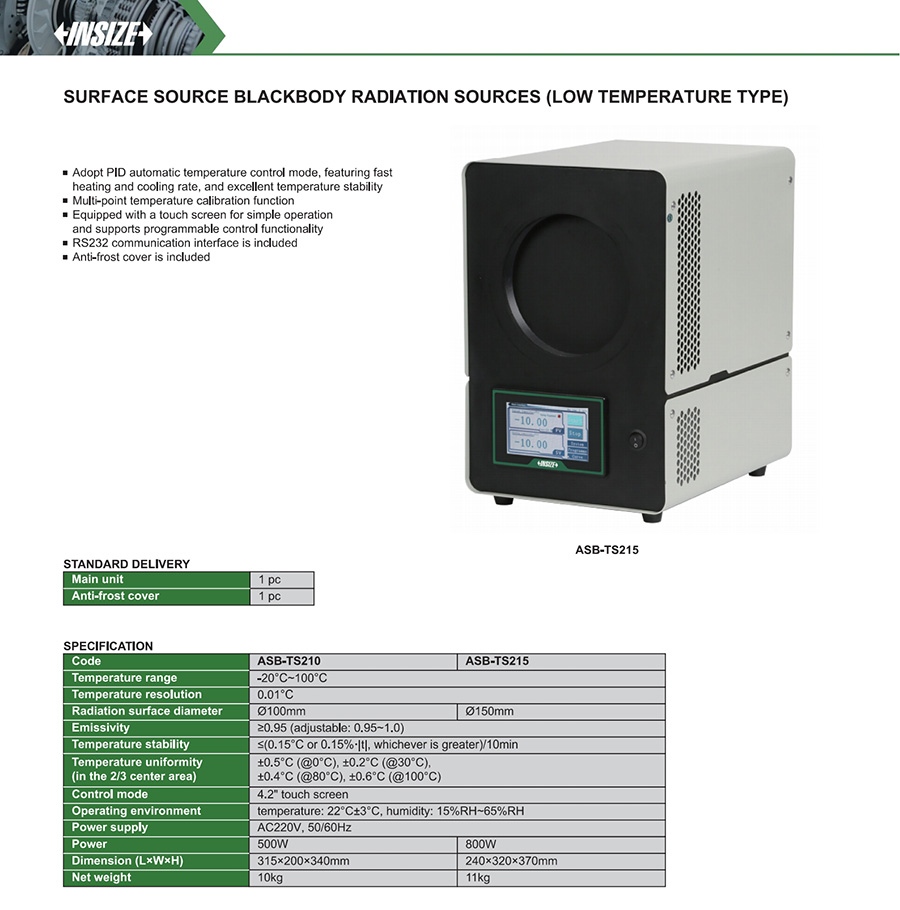

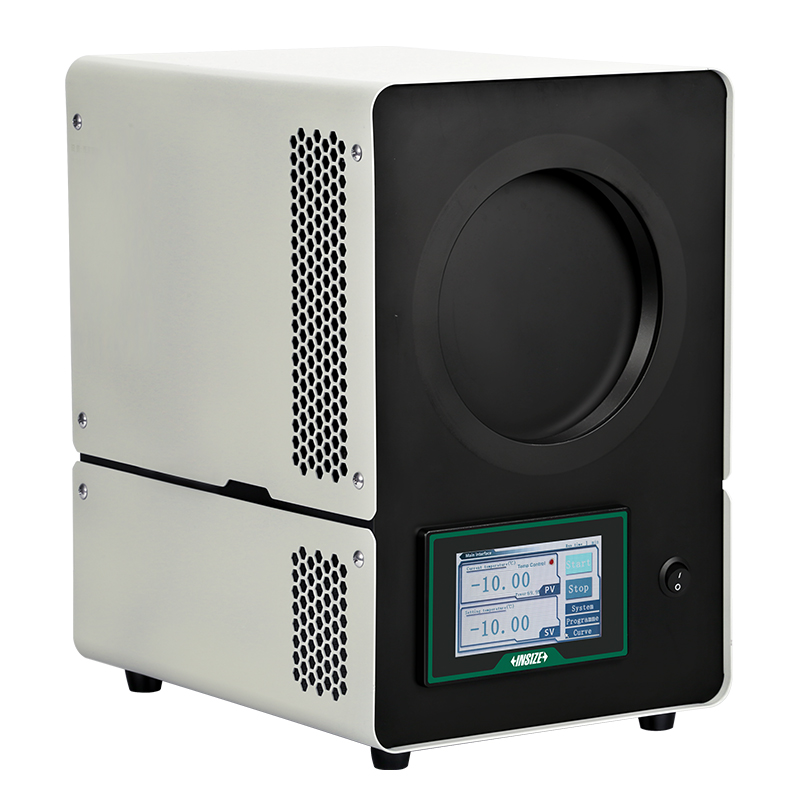

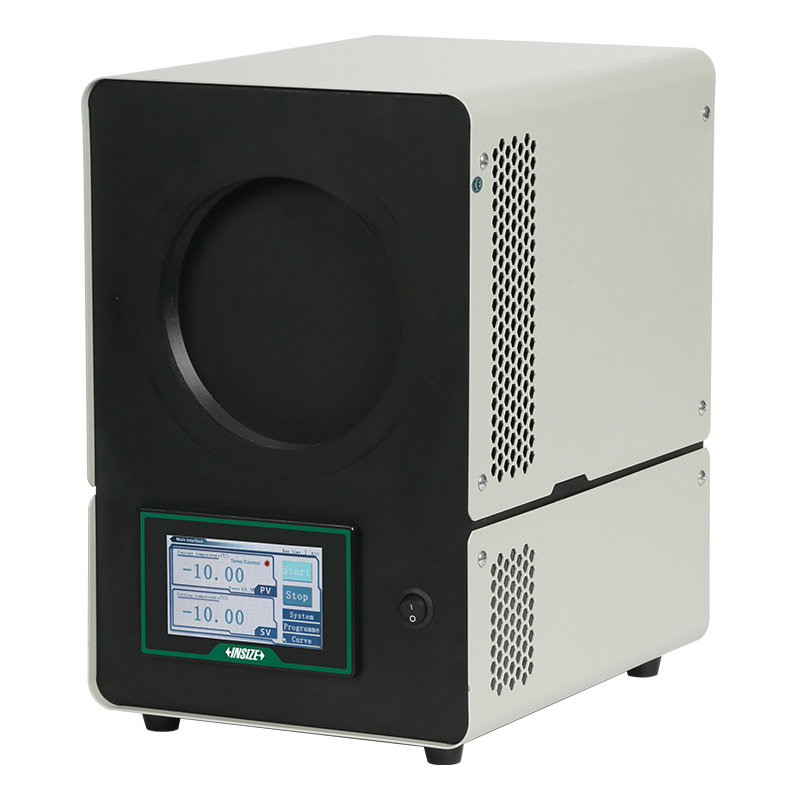

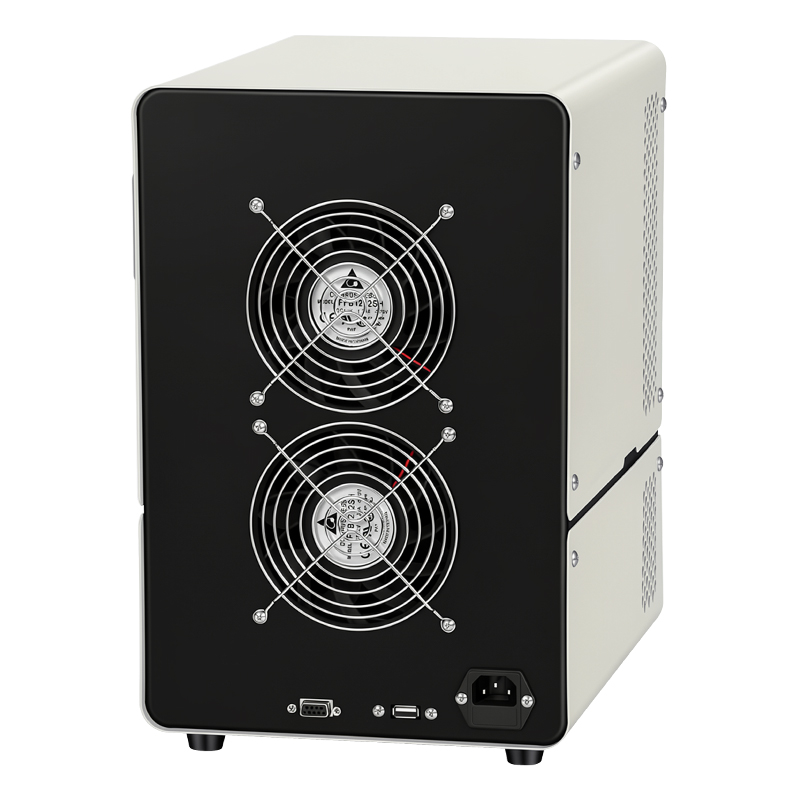

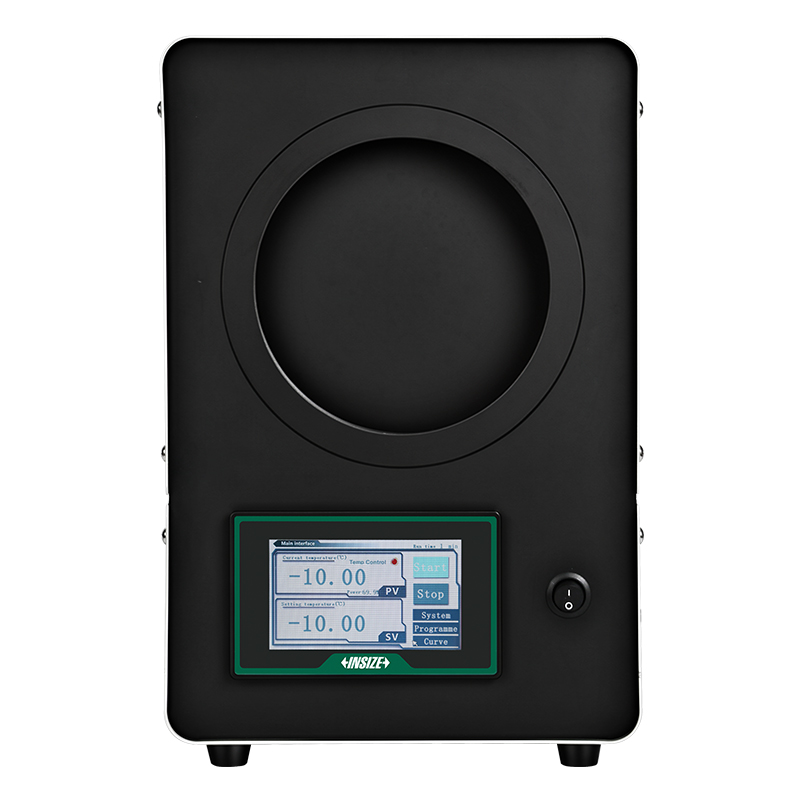

Surface Source Blackbody Radiation Sources (Low Temperature Type)
Code: ASB-TS210/TS215
Adopt PID automatic temperature control mode, featuring fast heating and cooling rate, and excellent temperature stability
Multi-point temperature calibration function
Equipped with a touch screen for simple operation and supports programmable control functionality
RS232 communication interface is included
Anti-frost cover is included
Specification
| Code | Diameter (ØD) | Temperature range | Emissivity |
|---|---|---|---|
| ASB-TS210 | Ø100mm | -20°C~100°C | ≥0.95 (adjustable: 0.95~1.0) |
| ASB-TS215 | Ø150mm | -20°C~100°C | ≥0.95 (adjustable: 0.95~1.0) |
