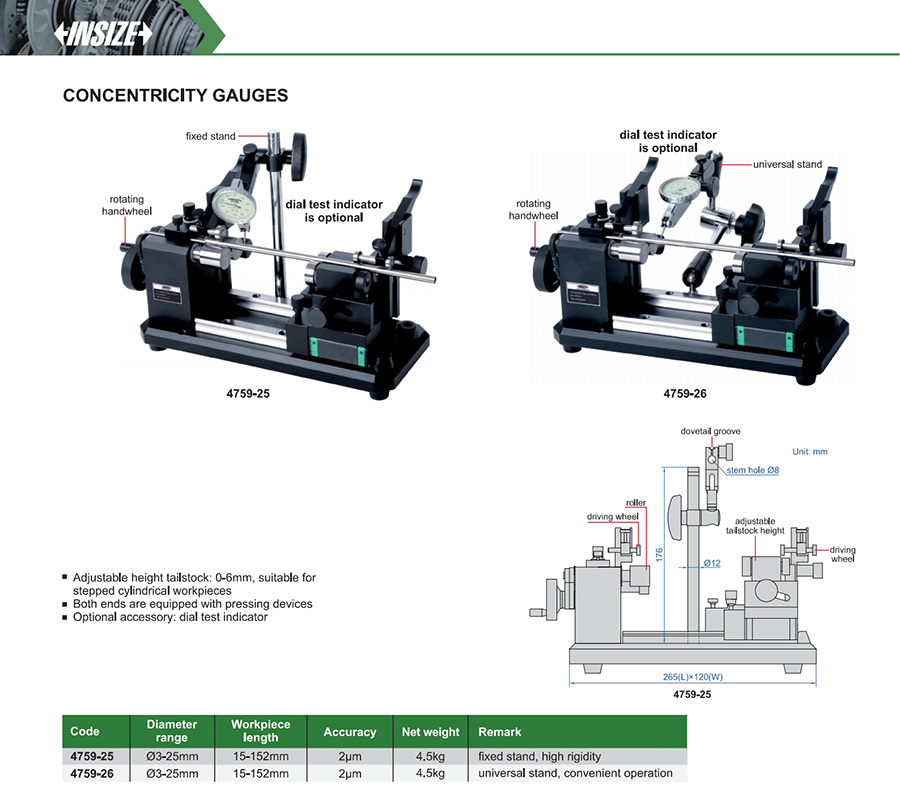

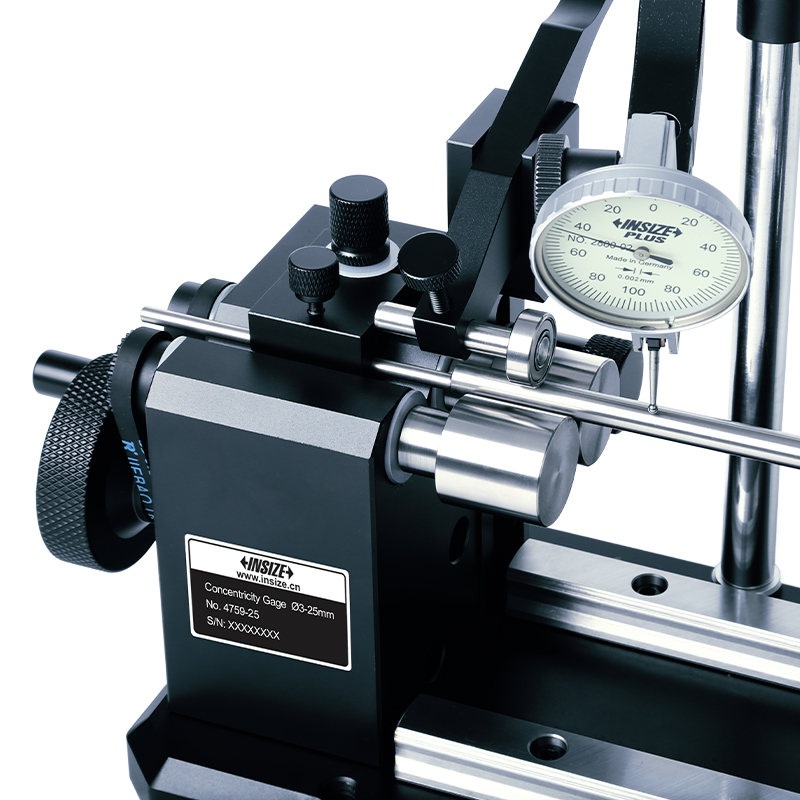

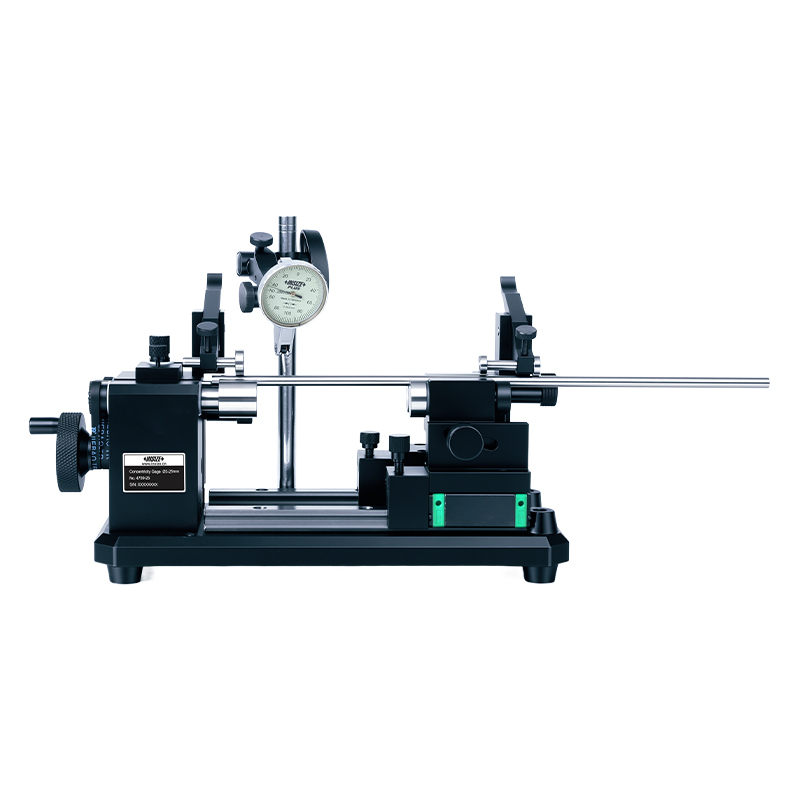

Concentricity Gauges
Code: 4759-25/26
Adjustable height tailstock: 0-6mm, suitable for stepped cylindrical workpieces
Both ends are equipped with pressing devices
Optional accessory: dial test indicator
Specification
| Code | Accuracy | Diameter range | Remark |
|---|---|---|---|

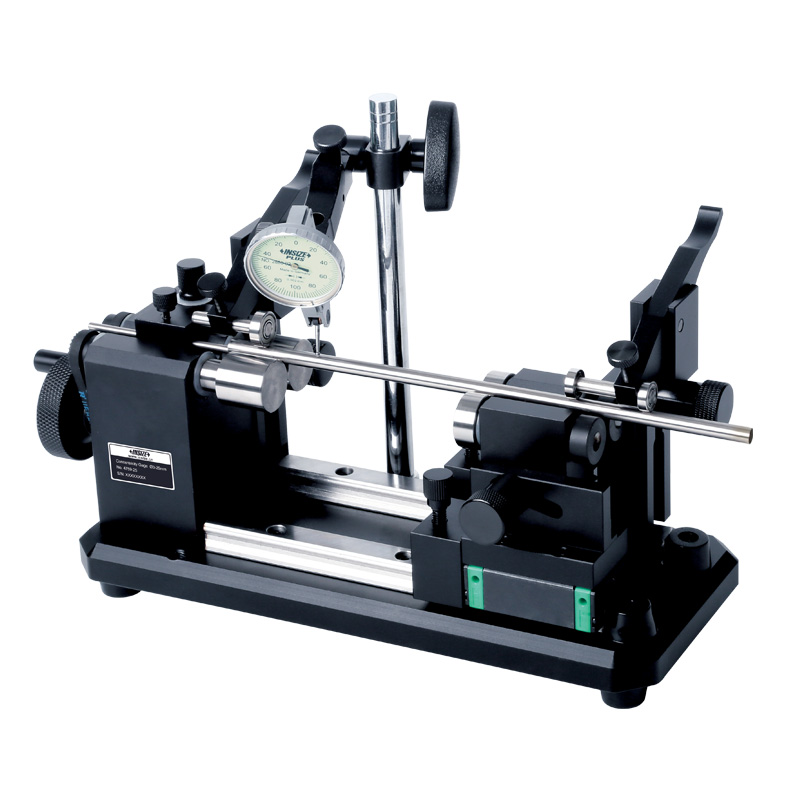

| 4759-25 | 2µm | Ø3-25mm | fixed stand, high rigidity |

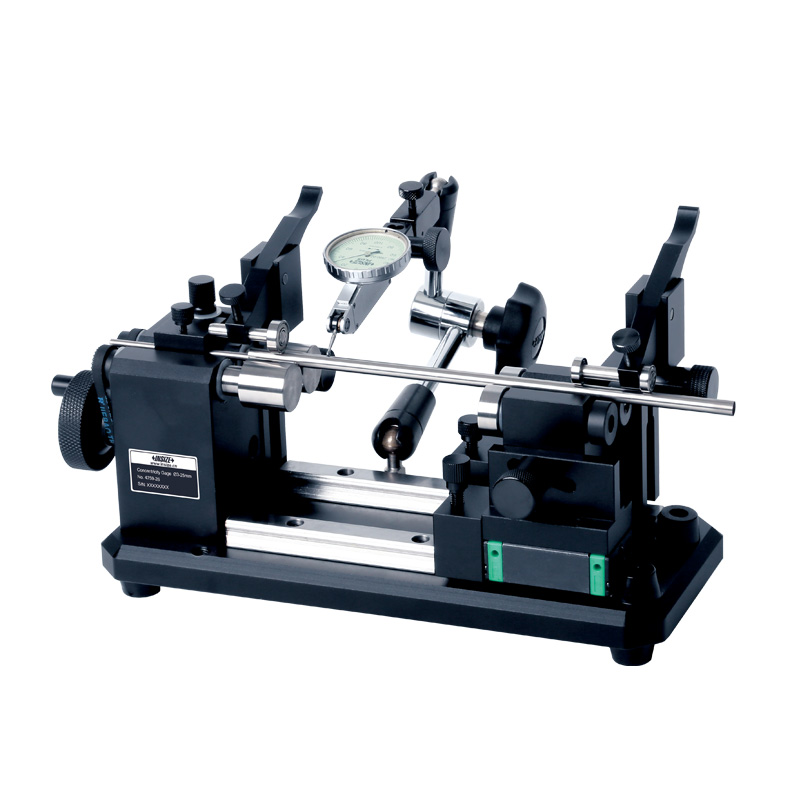

| 4759-26 | 2µm | Ø3-25mm | universal stand, convenient operation |
