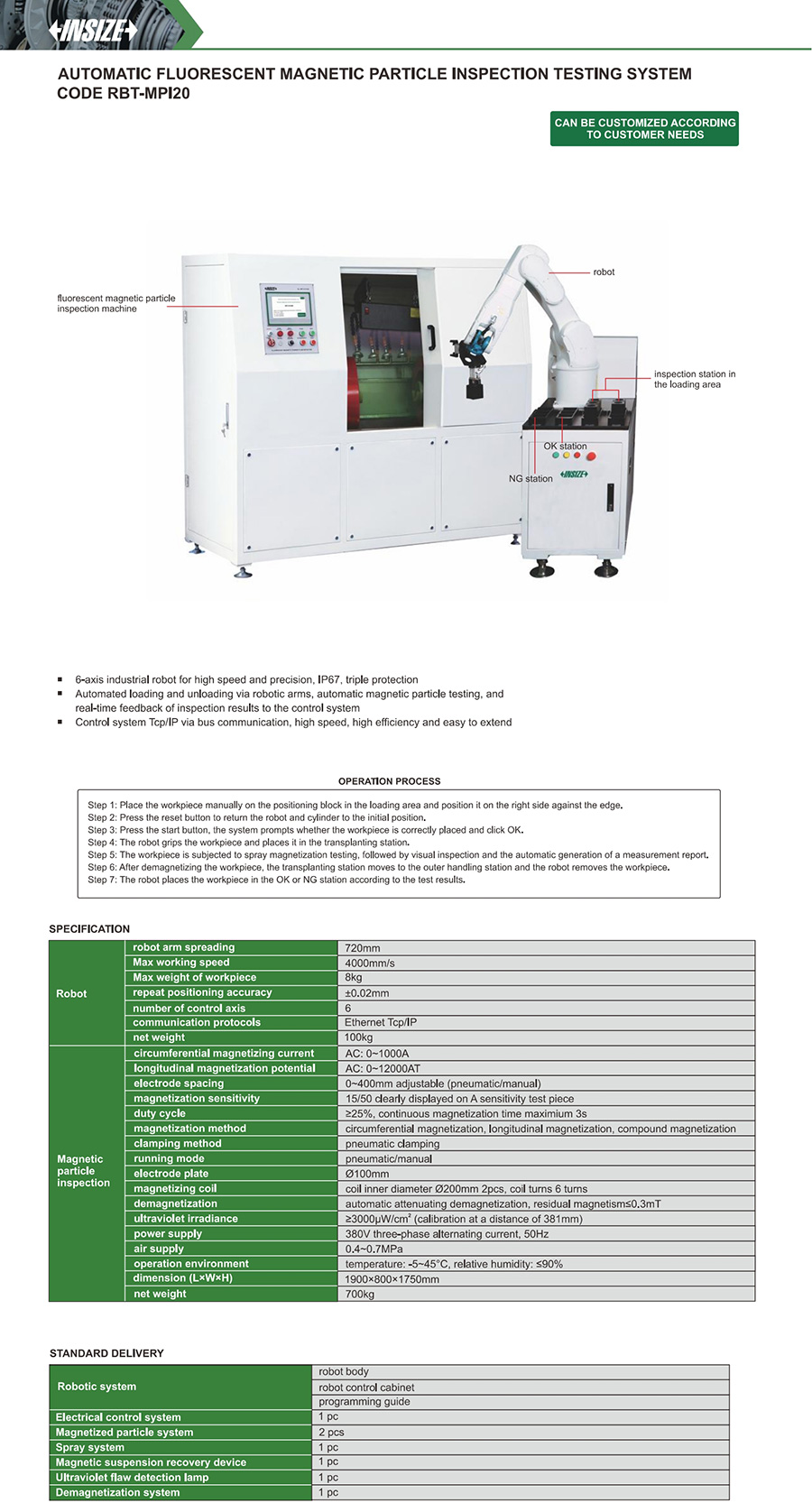

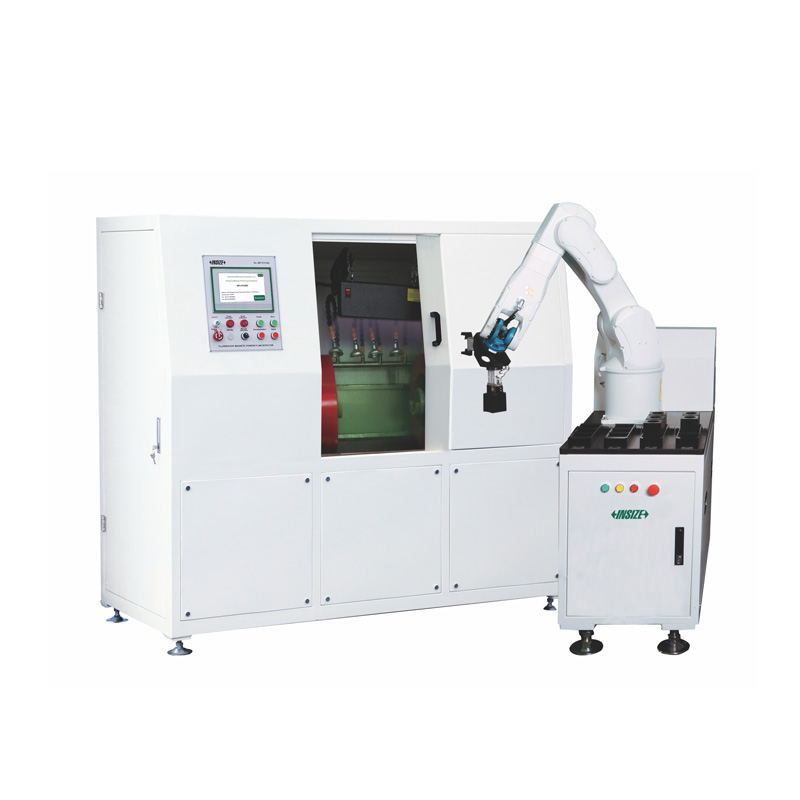

Automatic Fluorescent Magnetic Particle Inspection Testing System
Code: RBT-MPI20
6-axis industrial robot for high speed and precision, IP67, triple protection
Automated loading and unloading via robotic arms, automatic magnetic particle testing, and real-time feedback of inspection results to the control system
Control system Tcp/IP via bus communication, high speed, high efficiency and easy to extend
Specification
| Code | Sensitivity | Electrode spacing |
|---|---|---|
| RBT-MPI20 | 15/50 clearly displayed on A sensitivity test piece | 0~400mm adjustable (pneumatic/manual) |
