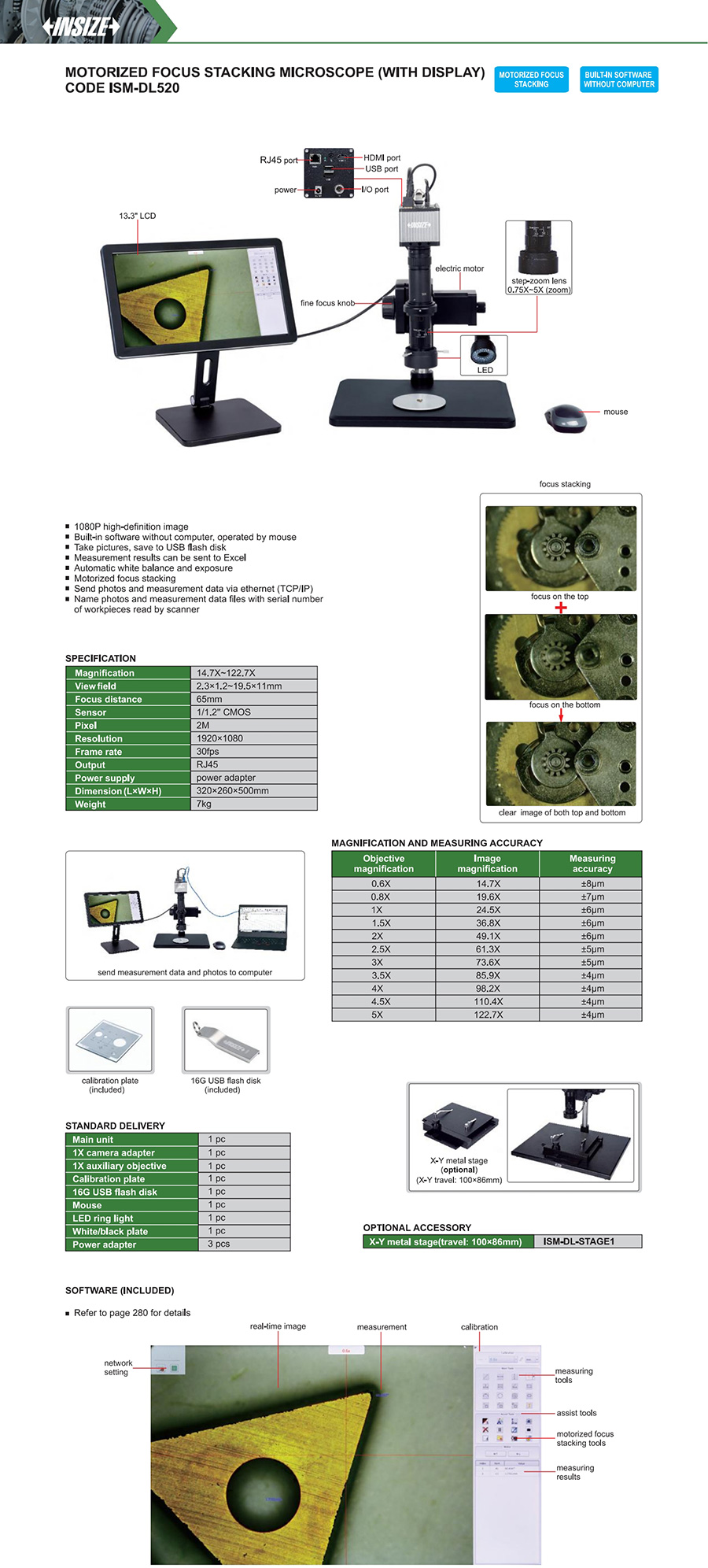

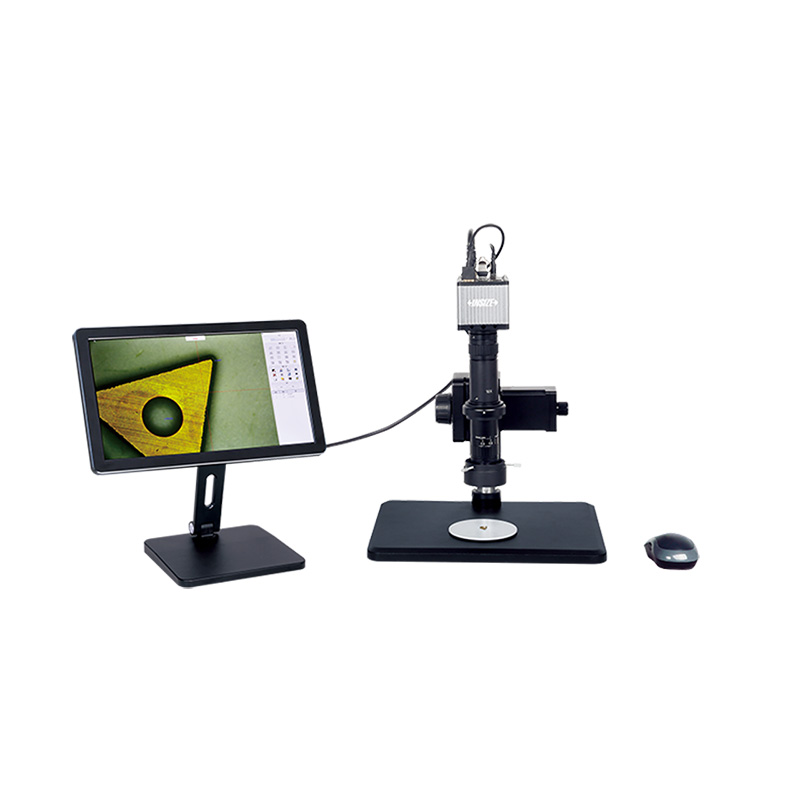

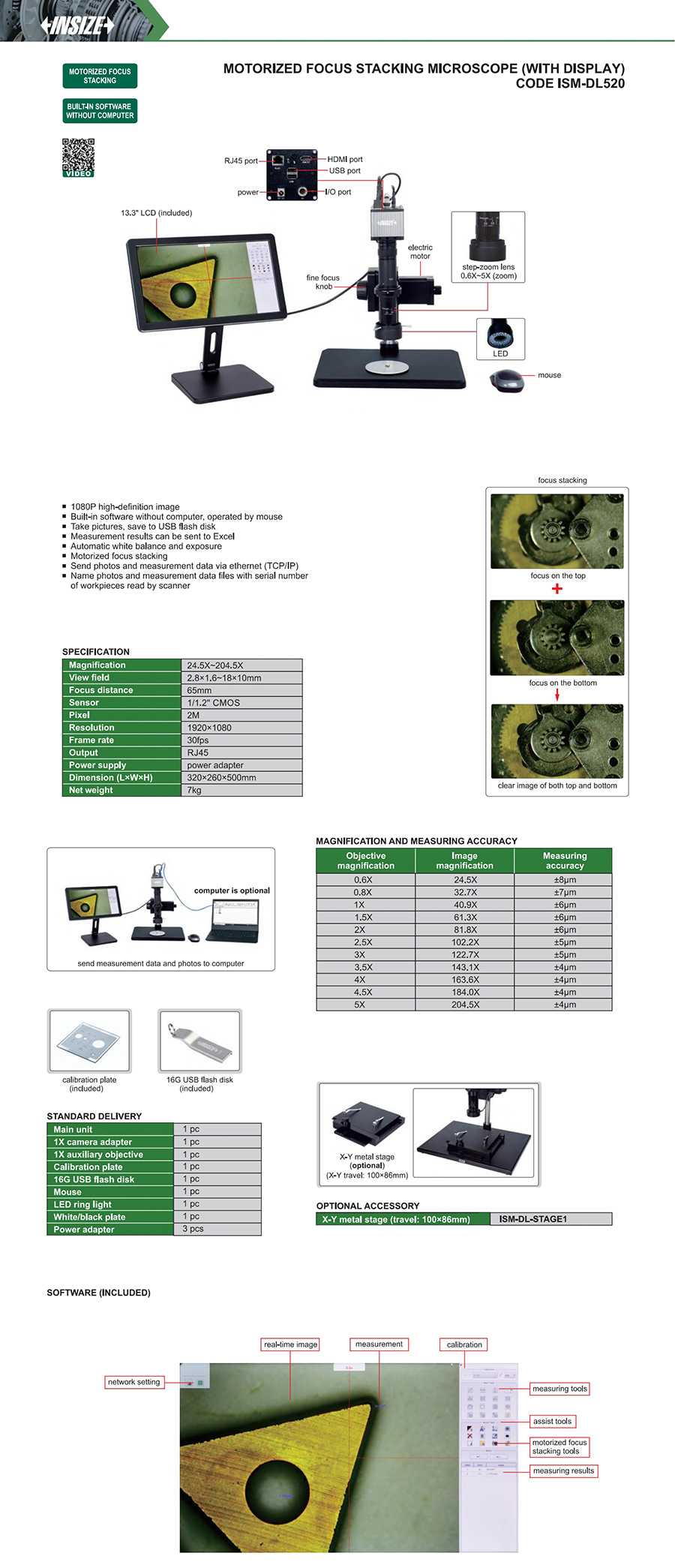

Motorized Focus Stacking Microscope (With Display)
Code: ISM-DL520
1080P high-definition image
Built-in software without computer, operated by mouse
Take pictures, save to USB flash disk
Measurement results can be sent to Excel
Automatic white balance and exposure
Motorized focus stacking
Send photos and measurement data via ethernet (TCP/IP)
Name photos and measurement data files with serial number of workpieces read by scanner
Specification
| Code | Type | Magnification | View field | Pixel |
|---|---|---|---|---|
| ISM-DL520 | digital measuring microscopes | 14.7X~122.7X | 2.3×1.2~19.5×11mm | 2M |
