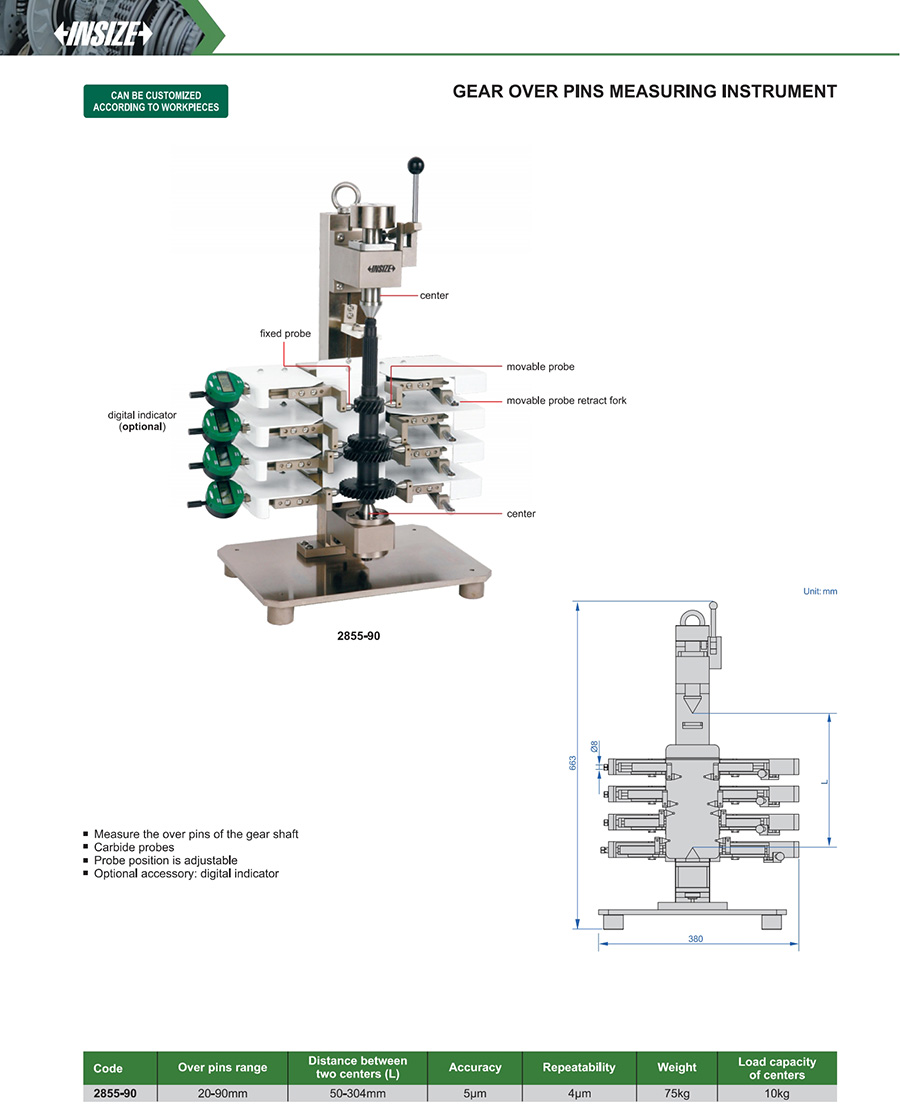

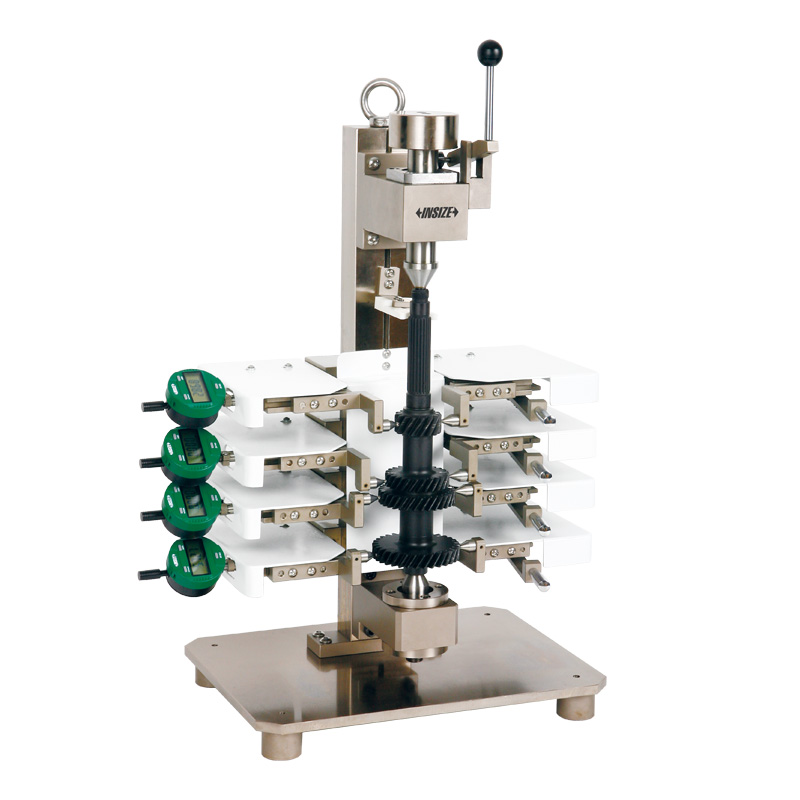

Gear Over Pins Measuring Instrument
Code: 2855-90
Measure the over pins of the gear shaft
Carbide probes
Probe position is adjustable
Optional accessory: digital indicator
Specification
| Code | Accuracy | Repeatability | Over pins range |
|---|---|---|---|
| 2855-90 | 5µm | 4µm | 20-90mm |
