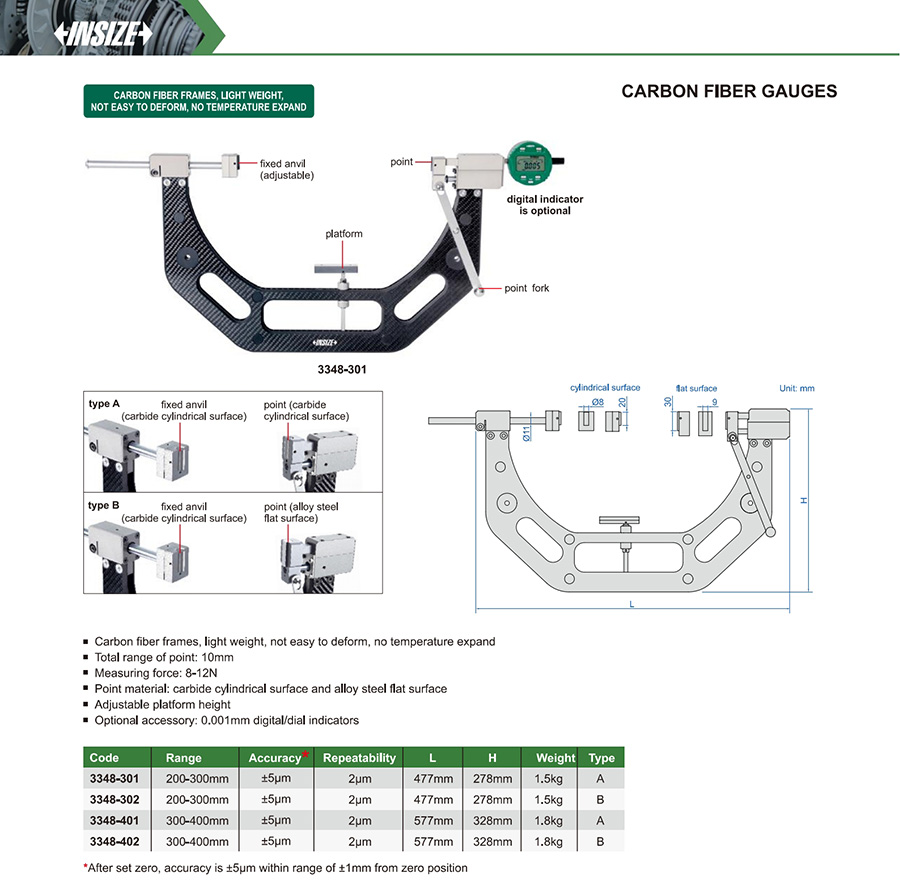

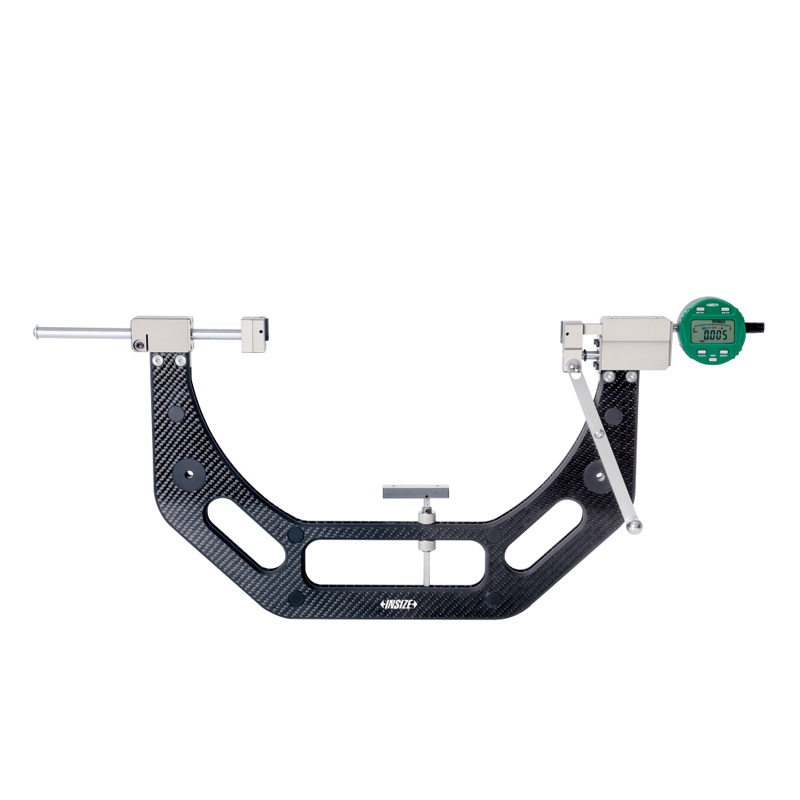

Carbon Fiber Gauges
Code: 3348
Carbon fiber frames, light weight, not easy to deform, no temperature expand
Total range of point: 10mm
Measuring force: 8-12N
Point material: carbide cylindrical surface and alloy steel flat surface
Adjustable platform height
Specification
| Code | Range | Repeatability |
|---|---|---|
| 3348-301 | 200-300mm | 2μm |
| 3348-302 | 200-300mm | 2μm |
| 3348-401 | 300-400mm | 2μm |
| 3348-402 | 300-400mm | 2μm |
