Industrial Weighing and Data Collection: INSIZE 8308 Series Electronic Balances

Accurate and stable weighing is important for reliable measurement data in industrial operations. Tasks such as component weight inspection, material inventory, sample preparation, and finished product weight checks require weighing equipment that is easy to operate and helps reduce manual recording errors.

The INSIZE 8308 Series Industrial Electronic Balances provide weighing, parts counting, and data output functions. With weighing capacities from 3kg to 30kg, the series offers different models for factory quality inspection, warehouse inventory, laboratory work, and packaging inspection. The balances also support INSIZE data transmission accessories for digital data collection.

Key Features of the INSIZE 8308 Series

1. Durable, Easy-to-Clean Weighing Pan

The balances feature a double weighing pan made of 304stainless steel and plastic. The corrosion-resistant pan is easy to remove and clean, making it suitable for frequent industrial use.

2. Simple Operation for Daily Weighing Tasks

The 8308 Series provides zero-setting, tare subtraction, weighing, and simple parts counting, with one-button switching between kg and lb. The straightforward controls require minimal training and provide a cost-effective option for daily weighing tasks.

3. Dual Power Supply for Continuous Operation

The balances operate at 0–40°C and ≤80% RH. They support a 220V power supply and a built-in rechargeable lead-acid battery (6V/4Ah), allowing weighing to continue during power outages.

4. Multiple Models for Different Weighing Requirements

The 8308 Series covers weighing capacities from 3 kg to 30 kg, with readability as fine as 0.1g.

Different models are available for weighing small precision components, general materials, and larger packaged items. Users can select a model based on the required weighing capacity and readability.

5. RS232 Data Output: From Manual Recording to Digital Data Collection

In routine quality inspection, weighing results are often recorded by hand and then entered into a computer. This adds an extra step to the inspection process and increases the risk of transcription errors.

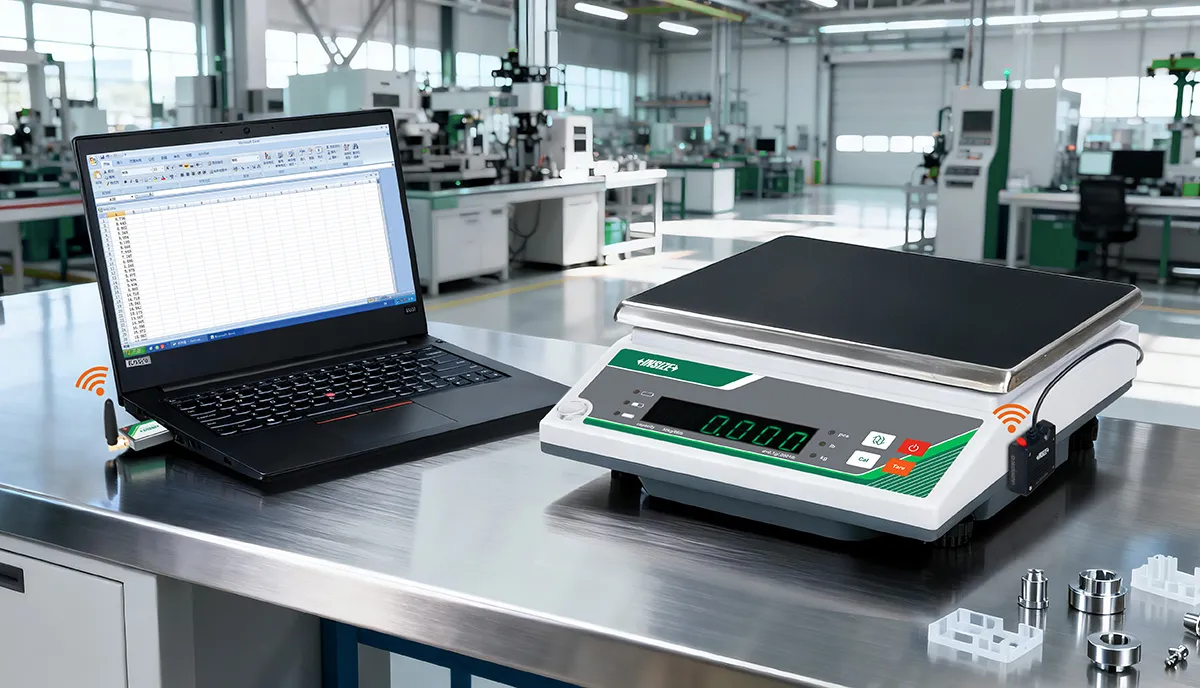

The 8308 Series includes a standard RS232 output interface, allowing weighing data to be transferred to a computer through compatible INSIZE data transmission accessories. Instead of manually copying each result, operators can collect weighing data electronically for recordkeeping.

The balances support optional INSIZE accessories, including:

• 8301-CABLE: RS232 cable for computer connection

• 7302-8301: Data output cable (keyboard format)

• 7315-8301: Wireless transmitter

• 8391-PRN10: Printer

The 7315-8301 wireless transmitter requires a compatible receiver from the 7315-2/3/6/7/8/9 series.

With wired or wireless data transmission, weighing results can be transferred directly to a computer, reducing manual entry and recording errors. A compatible printer can also be used to keep paper records when needed.

For businesses handling repeated weighing and inspection tasks, digital data collection can simplify recordkeeping and make inspection data easier to organize and retrieve.

INSIZE 8308 Series Model Comparison

The following models cover different weighing capacities, minimum loads, readability levels, repeatability, linearity, and stabilization times.

Model Selection Tips

• For small precision components: Choose a model with 0.1g readability.

• For general material inventory: Consider models with 0.5g, 1g, or 5g readability, depending on the weighing requirements and budget.

Applications

The INSIZE Industrial Electronic Balances can be used for several industrial weighing tasks:

• Factory quality inspection: Component weight checks and incoming material inspection.

• Warehouse inventory: Weighing small materials and counting parts for stocktaking.

• Laboratory work: Sample preparation and specimen weighing.

• Packaging inspection: Finished product weight checks and identification of products outside specified weight limits.
