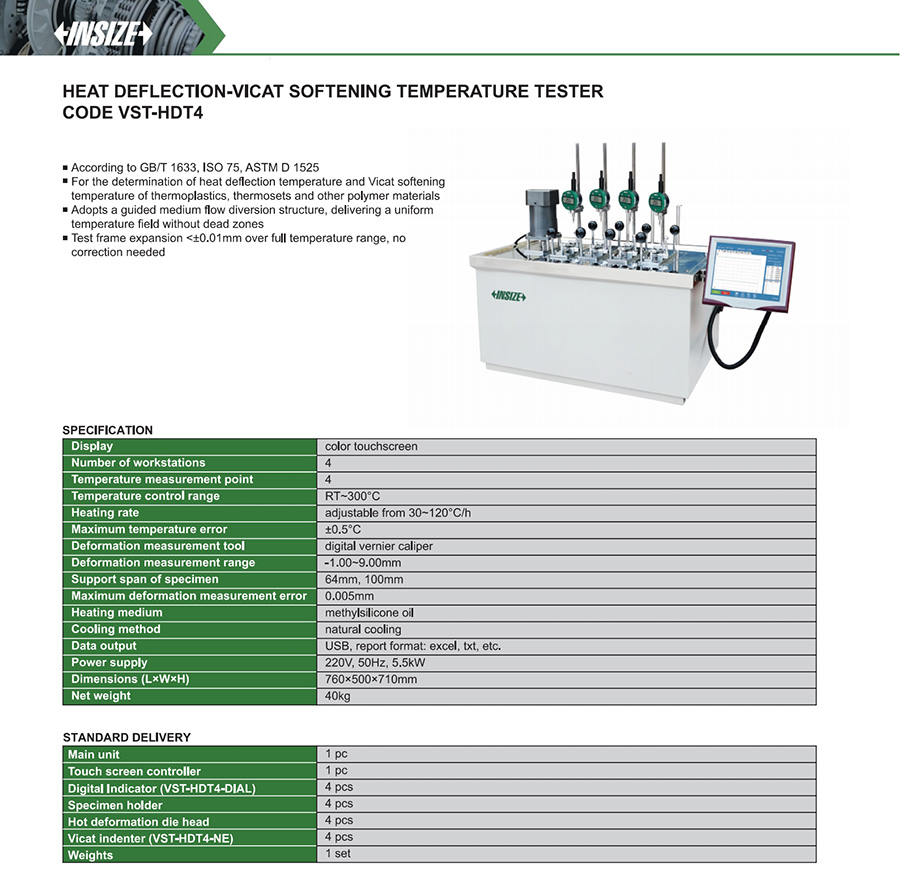

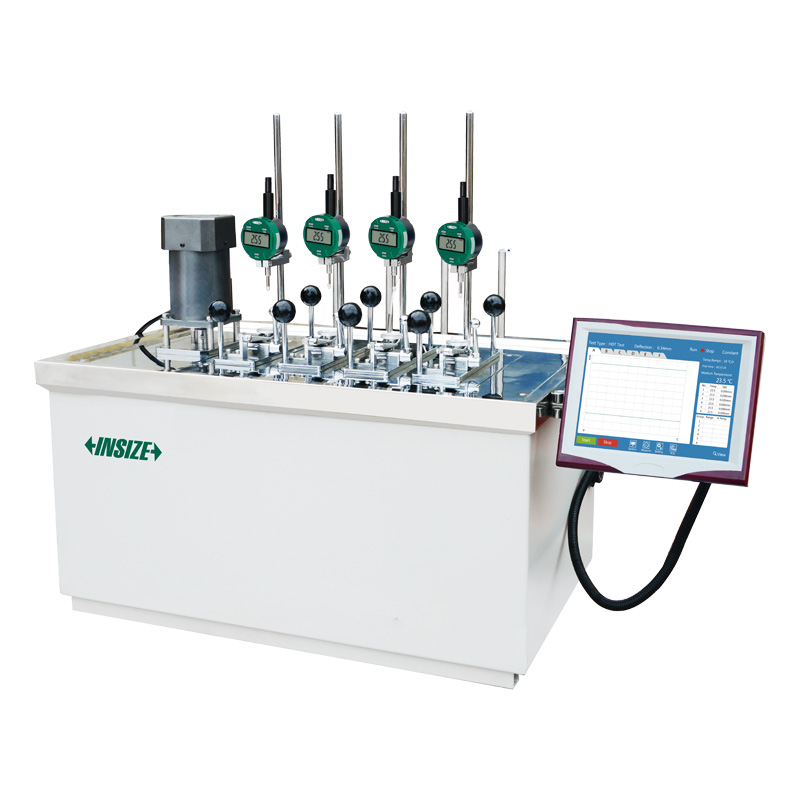

Heat Deflection-Vicat Softening Temperature Tester
Code: VST-HDT4
According to GB/T 1633, ISO 75, ASTM D 1525
For the determination of heat deflection temperature and Vicat softening temperature of thermoplastics, thermosets and other polymer materials
Adopts a guided medium flow diversion structure, delivering a uniform temperature field without dead zones
Test frame expansion <±0.01mm over full temperature range, no correction needed
Specification
| Code | Temperature range | Deformation measurement range |
|---|---|---|
| VST-HDT4 | RT~300°C | -1.00~9.00mm |
